10150-6000EL 3M Connector Accessories - 商品詳細情報

10150-6000EL

Connector Accessories

Search Alternative Products

Show Similar

10150-6000EL

Connector Accessories

Product Overview

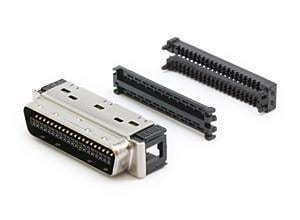

Conn High Speed PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694050

Search Alternative Products

Show Similar

Product Overview

Conn High Speed PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694050

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_3M_Datasheet_20150128123707592

Specifications

Manufacturer name: 3M

Product name: 10150-6000EL

Product classification: Connector Accessories

Lifecycle Status: Active

RoHS: RoHS

Height: 12.7mm

Length: 41.1mm

Width: 9.1mm

Contact point finish: Gold Over Nickel

Maximum service temperature: 85°C

Minimum service temperature: -55°C

Number of poles: 50

Rated Voltage(DC): 200V

Rated current: 500mA

Shape/Type: プラグ

Wire connection method: IDT

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1
