10214-6202PL 3M Connector Accessories - 商品詳細情報

10214-6202PL

Connector Accessories

加工依頼

ハーネス加工の依頼はこちら

加工依頼

点击这里查看类似商品

10214-6202PL

Connector Accessories

产品概要

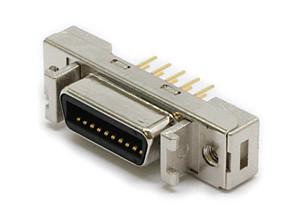

Conn Mini D Ribbon RCP 14 POS 2.54mm Solder ST Thru-Hole 14 Terminal 1 Port

生命周期状态 : Active

ECCN : EAR99

HTSN : 8536694050

加工依頼

ハーネス加工の依頼はこちら

加工依頼

点击这里查看类似商品

产品概要

Conn Mini D Ribbon RCP 14 POS 2.54mm Solder ST Thru-Hole 14 Terminal 1 Port

生命周期状态 : Active

ECCN : EAR99

HTSN : 8536694050

产品文档

数据表
3D CAD情報
- SamacSys
占用空间/符号/3D CAD信息

数据表
规格书(English)	EN_3M_Datasheet_20141030025014920

规格

制造商名称: 3M

制品名: 10214-6202PL

制品分类: Connector Accessories

生命周期状态: Active

RoHS: 符合RoHS标准

Height: 11mm

Length: 29.5mm

Other names: 04547452261444 | JE150317244 | 3937-10214-6202PL | 7000007547 | 54745226144

Width: 9.1mm

Contact point finish: Gold Over Nickel

Maximum service temperature: 85°C

Minimum service temperature: -20°C

Number of poles: 14

Rated current: 1A

Shape/Type: リセプタクル(ストレート)

Wire connection method: Solder

原厂包装: Bulk

制造商数量: 1
