10220-1210PE 3M Connector Accessories - 商品詳細情報

10220-1210PE

Connector Accessories

Search Alternative Products

Show Similar

10220-1210PE

Connector Accessories

Product Overview

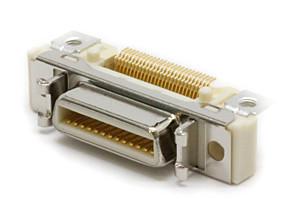

Conn Mini D Ribbon RCP 20 POS 0.64mm Solder RA SMD 20 Terminal 1 Port Box

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694050

Search Alternative Products

Show Similar

Product Overview

Conn Mini D Ribbon RCP 20 POS 0.64mm Solder RA SMD 20 Terminal 1 Port Box

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694050

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_3M_Datasheet_20141104221934393
Datasheet	EN_3M_Datasheet_20180202110751744

Specifications

Manufacturer name: 3M

Product name: 10220-1210PE

Product classification: Connector Accessories

Lifecycle Status: Active

RoHS: RoHS

Height: 9.35mm

Length: 33.4mm

Maximum operating temperature: 105C

Minimum operating temperature: -55C

Other names: 3937-10220-1210PE | 102201210PE | JE150317798 | 4547452261987 | 7000007560 | 3M1813 | 54745226198 | 10220-1210PE-ND

Width: 15.15mm

Contact point finish: Gold Over Nickel

Maximum service temperature: 105°C

Minimum service temperature: -55°C

Number of poles: 20

Rated current: 1A

Shape/Type: 表面実装リセプタクル(ライトアングル型)

Type: SCSI

Wire connection method: Solder

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1
