10226-2210PE 3M Connector Accessories - 商品詳細情報

10226-2210PE

Connector Accessories

Search Alternative Products

Show Similar

10226-2210PE

Connector Accessories

Product Overview

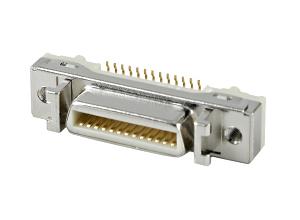

Conn Mini D Ribbon RCP 26 POS 1.27mm Solder ST SMD 26 Terminal 1 Port Box

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694050

Search Alternative Products

Show Similar

Product Overview

Conn Mini D Ribbon RCP 26 POS 1.27mm Solder ST SMD 26 Terminal 1 Port Box

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694050

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_3M_Datasheet_20141104172228882
Datasheet	EN_3M_Datasheet_20180202110822581

Specifications

Manufacturer name: 3M

Product name: 10226-2210PE

Product classification: Connector Accessories

Lifecycle Status: Active

RoHS: RoHS

Height: 11mm

Length: 37.21mm

Maximum operating temperature: 105C

Minimum operating temperature: -55C

Width: 9.1mm

Contact point finish: Gold Over Nickel

Maximum service temperature: 105°C

Minimum service temperature: -55°C

Number of poles: 26

Rated current: 1A

Shape/Type: 表面実装リセプタクル(ストレート型)

Type: SCSI

Wire connection method: Solder

Manufacturer packaging quantity: 1
