37104-2165-000FL 3M Connector Rectangular - 商品詳細情報

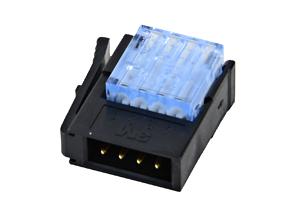

37104-2165-000FL

Connector Rectangular

Search Alternative Products

Show Similar

37104-2165-000FL

Connector Rectangular

Product Overview

Conn Power PL 4 POS 2mm IDT ST Cable Mount 4 Terminal 1 Port

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536698000

Search Alternative Products

Show Similar

Product Overview

Conn Power PL 4 POS 2mm IDT ST Cable Mount 4 Terminal 1 Port

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536698000

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_3M_Datasheet_20141105080614389

Specifications

Manufacturer name: 3M

Product name: 37104-2165-000FL

Product classification: Connector Rectangular

Lifecycle Status: Active

RoHS: RoHS

Pitch: 2mm

Product type: ミニ・クランプコネクタ

Shape/Type: ワイヤーマウントプラグ

Rated current: 最大3.0A

Contact point finish: ニッケルメッキ2.5.μm下地、金メッキ0.2μｍ以上

Height: 5.9mm

Material of terminal: Gold Over Nickel

Maximum service temperature: 85℃(1A通電時)、75℃(2A通電時)、60℃(3A通電時)

Minimum service temperature: -20

Rated Voltage(DC): 32V

Width: 15.6mm

Wire connection method: 圧接

Number of poles: 4

Manufacturer packaging quantity: 1
