MAX14661ETI+ Analog Devices/Maxim Integrated Analog Switches, Multiplexers, Demultiplexers - 商品詳細情報

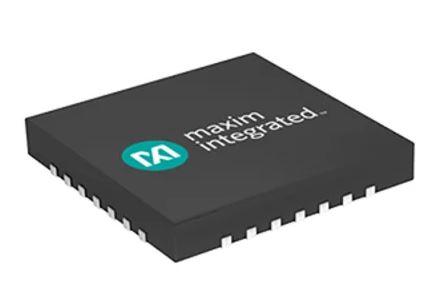

MAX14661ETI+

Analog Devices/Maxim Integrated

Analog Switches, Multiplexers, Demultiplexers

Search Alternative Products

Show Similar

MAX14661ETI+

Analog Devices/Maxim Integrated

Analog Switches, Multiplexers, Demultiplexers

Analog Devices/Maxim Integrated

Analog Switches, Multiplexers, Demultiplexers

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542390000

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542390000

Product Information

Data sheet
3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Analog Devices/Maxim Integrated

Product name: MAX14661ETI+

Product classification: Analog Switches, Multiplexers, Demultiplexers

Lifecycle Status: Active

RoHS: RoHS

Package: 28-WFQFN Exposure Pad

Other names: -4941-MAX14661ETI+

Bandwidth: 60MHz

Channel Fit: 250mOhm

Crosstalk: -80dB@1MHz

Leakage current: 50nA

Mounting Type: Surface Mount

Multiplexer: 16:2

Number of circuits: 1

ON Resistance: 8Ohm

Operating temperature range: -40 to 85C(TA)

Package (Supplier): 28-TQFN(4x4)

Switch Time: 5us(STD)

Voltage - Supply, Single: 1.6 to 5.5V

Manufacturer Packaging: Tube

Manufacturer packaging quantity: 150

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Analog Devices/Maxim Integrated_Datasheet_20241105182558970
Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
