HMC451LC3 Analog Devices RF Amplifiers - 商品詳細情報

HMC451LC3

Analog Devices

RF Amplifiers

Search Alternative Products

Show Similar

HMC451LC3

Product Overview

Medium pow amp SMT, 5 - 20 GHz

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542330000

Search Alternative Products

Show Similar

Product Overview

Medium pow amp SMT, 5 - 20 GHz

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542330000

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Analog Devices

Product name: HMC451LC3

Product classification: RF Amplifiers

Lifecycle Status: Active

RoHS: RoHS

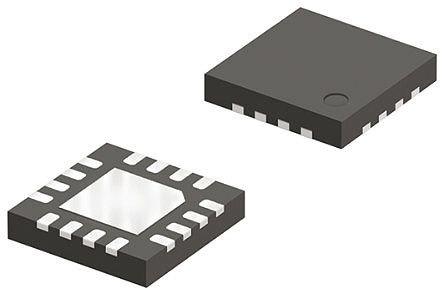

Package: 16-VFQFN/Exposed Pad

Mounting Type: Surface Mount

Supply voltage: 5V

Frequency: 5 to 20GHz

Gain: 17dB

Supply current: 114mA

RF Type: General Purpose

P1dB: 19.5dBm

Noise Figure: 7dB

Other names: 1127-2967-ND | 1127-2967 | -2735-HMC451LC3 | 505-HMC451LC3

Manufacturer Packaging: Cut tape

Manufacturer packaging quantity: 13

If you find an error in the product information, please let us know here.
