BSV-1.8S9R5HE  Bellnix  DC to DC Converter Modules  -  商品詳細情報

BSV-1.8S9R5HE Bellnix

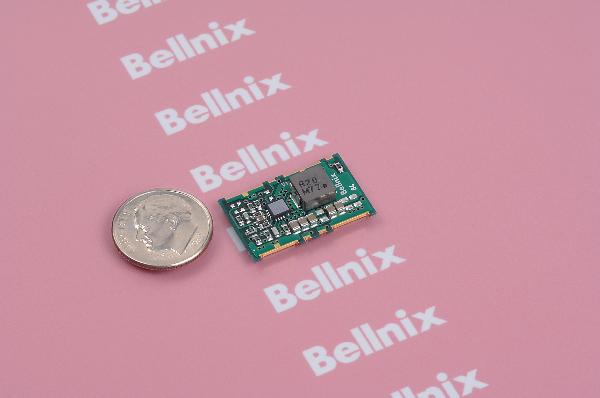

The images are for reference only. For the precise specifications, refer to the product specifications.

Added to bookmarks.
  • BSV-1.8S9R5HE

    BSV-1.8S9R5HE

    Bellnix

    DC to DC Converter Modules

    Bellnix

    DC to DC Converter Modules

    Added to bookmarks.
  • Lifecycle Status : NRND
    ECCN EAR99

    HTSN 8542390000

    Lifecycle Status : NRND
    ECCN EAR99

    HTSN 8542390000

    Product Information

    Related Videos
    Data sheet
    Design/Simulation Data
    Other Documents

    Specifications

    Manufacturer name
    Bellnix
    Product name
    BSV-1.8S9R5HE
    Product classification
    DC to DC Converter Modules
    Lifecycle Status
    NRND
    RoHS
    RoHS
    Input voltage
    3.3 to 5V
    Output current
    9.5A
    Output power
    17.1W
    Output voltage
    1.8V
    Series name
    BSV-HE
    Type
    Non-insulatedPoLModule
    Fan-out
    1
    Output Power
    3V
    Maximum input voltage
    5.5V
    Insulated/Non-insulated
    非絶縁
    Maximum service temperature
    85C
    Minimum service temperature
    -40C
    Maximum output current
    9.5A
    Operating temperature range
    -40 to 85C
    Efficiency
    87%
    Package
    9-SMD Module
    Size
    27.0x16.5x4.0mm
    Other names
    2277-BSV-1.8S9R5HE
    Purpose
    ITE(Commercial)
    Feature
    Adjustable Output|Remote on/off|Remote Sense
    Height
    4mm
    Length
    27mm
    Mounting Type
    Surface Mount
    Temperature range
    -40 to 85C
    Width
    16.5mm
    Manufacturer Packaging
    Bulk
    Manufacturer packaging quantity
    5
