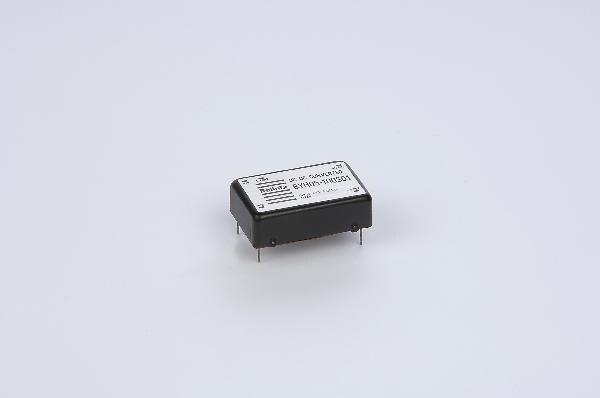

BYH12-200S01 Bellnix DC/DC Switching Regulators - 商品詳細情報

BYH12-200S01

Bellnix

DC/DC Switching Regulators

Search Alternative Products

Show Similar

BYH12-200S01

Bellnix

DC/DC Switching Regulators

Bellnix

DC/DC Switching Regulators

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542390000

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542390000

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Bellnix

Product name: BYH12-200S01

Product classification: DC/DC Switching Regulators

Lifecycle Status: Active

RoHS: RoHS

Series name: BYH

Type: High Voltage-Insulation Module

Fan-out: 1

Output Power: 11V

Maximum input voltage: 16V

Output voltage: 200V

Output power: 0.2W

Input voltage: 11 to 16V

Maximum output current: 1mA

Rated power: 0.2W

Isolation voltage: 250V

Operating temperature range: -10 to 60C

Package: 24-DIP Module|5Lead

Size: 32.6x20.4x10.3mm

Other names: 2277-BYH12-200S01

Electric power: 200mW

Feature: Adjustable Output

Mounting Type: Through Hole

Output current: 2mA

Purpose: ITE(Commercial)

If you find an error in the product information, please let us know here.

Expected Shipping Date : Jun-19-25

C1S Part Number
:
C1S130800030858

Ship-from

Hongkong

Stock : 37

Quantity

Add to BOM

Existing BOM

New BOM

Quote

Download quote (PDF).

MOQ/SPQ : 1/1
Minimum: 1 Multiples: 1

Packaging:Bulk

Bulk
Bulk is a package which the separete parts are packed in a bag, or packed individually.

Quantity	Pricing(RMB) VAT included
1+	¥640.710000

Price: ¥640.71

Merchandise total: ¥640.71

Processing costs, etc.: ¥0

Total(RMB): ¥640.71
