PDC015-FD15A05S Bourns Power Transformers - 商品詳細情報

PDC015-FD15A05S

Bourns

Power Transformers

Search Alternative Products

Show Similar

PDC015-FD15A05S

Product Overview

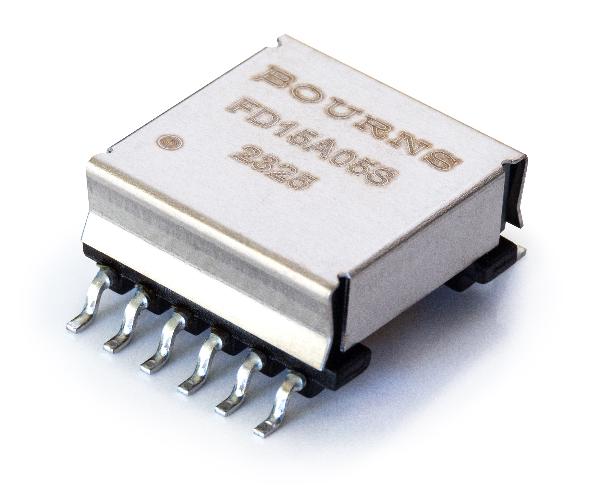

Power transformer, 15W, EFD15, 5V, SMD

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504312000

Search Alternative Products

Show Similar

Product Overview

Power transformer, 15W, EFD15, 5V, SMD

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504312000

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Bourns_Datasheet_20250314153941474

Specifications

Manufacturer name: Bourns

Product name: PDC015-FD15A05S

Product classification: Power Transformers

Lifecycle Status: Active

RoHS: RoHS

Series name: PDC-FD

Size: 18.00X17.50mm

Other names: 118-PDC015-FD15A05STR | 118-PDC015-FD15A05SCT | 118-PDC015-FD15A05SDKR

Mounting Type: Surface Mount

Operating temperature range: -40 to 125C

Manufacturer Packaging: Tape & Reel
