Product Overview

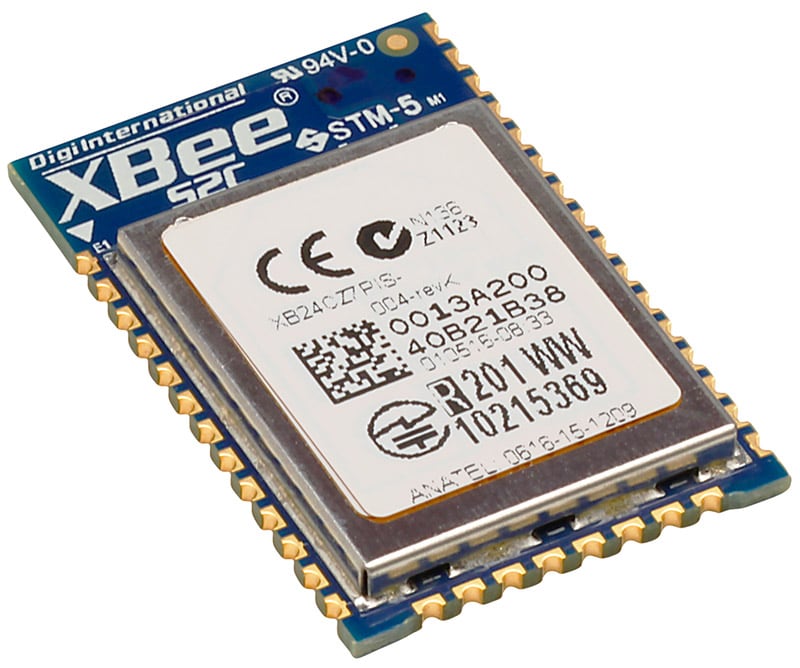

XBEE Zigbee Embedded Surface Mount Modules With PCB Antenna

Lifecycle Status : Active

ECCN : 5A992c.

HTSN : 8517620050

Search Alternative Products

Show Similar

Product Overview

XBEE Zigbee Embedded Surface Mount Modules With PCB Antenna

Lifecycle Status : Active

ECCN : 5A992c.

HTSN : 8517620050

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Specifications

Manufacturer name: Digi International

Product name: XB24CZ7PIS-004

Product classification: 802.15.4 Zigbee Modules

Lifecycle Status: Active

RoHS: RoHS

Power-supply voltage: 2.1 to 3.6V

Operating temperature range: -40 to 85C

Communication standards: ZigBee/IEEE802.15.4

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Digi International_Datasheet_20150409002906781
Datasheet	EN_Digi International_Datasheet_20180309145941448
Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
