200MSP3T4B6M2QE E-Switch Toggle Switch - 商品詳細情報

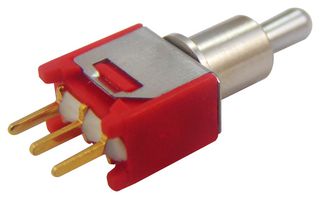

200MSP3T4B6M2QE

E-Switch

Toggle Switch

Search Alternative Products

Show Similar

200MSP3T4B6M2QE

ECCN : EAR99

HTSN : 8536509065

Search Alternative Products

Show Similar

ECCN : EAR99

HTSN : 8536509065

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: E-Switch

Product name: 200MSP3T4B6M2QE

Product classification: Toggle Switch

Series name: 200

Circuit: SPDT

Number of poles: 1

Number of contact points: 2

Functional operation: ON-OFF-ON

Rated current: 3A

Mounting Type: Through Hole

If you find an error in the product information, please let us know here.
