Product Overview

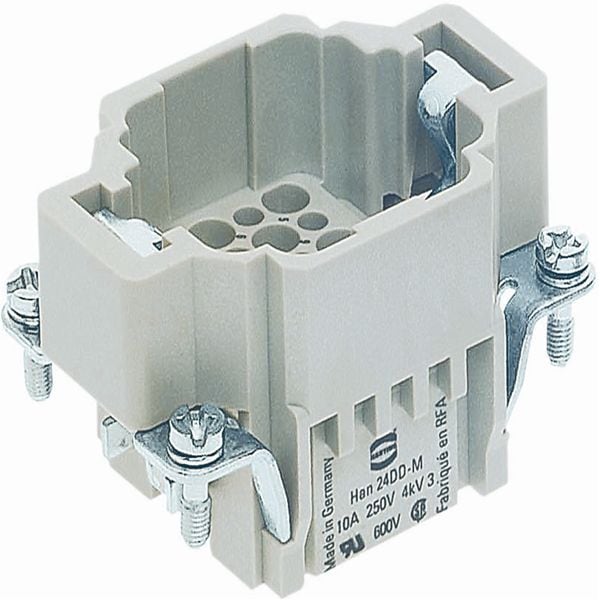

Conn Housing M 24Signal/1Ground POS Crimp ST

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536698000

Search Alternative Products

Show Similar

Product Overview

Conn Housing M 24Signal/1Ground POS Crimp ST

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536698000

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Harting

Product name: 09160243001

Product classification: Connector Discrete Wire Housing

Lifecycle Status: Active

Other names: 1195-1637 | 9160243001 | 09 16 024 3001

Contact resistance: below 3mΩ

Height: 34mm

Housing material: polycarbonate /UL94-V0

Length: 51mm

Maximum operating temperature: 125C

Maximum service temperature: +125°C

Minimum service temperature: -40°C

Number of arrays: 6

Number of poles: 24Signal/1Ground

Rated Voltage(AC): 30VAC

Rated Voltage(DC): 42V

Rated current: 10A

Series name: HanDD

Shape/Type: Tarminal(Male)

Type: Housing

Width: 33.6mm

If you find an error in the product information, please let us know here.
