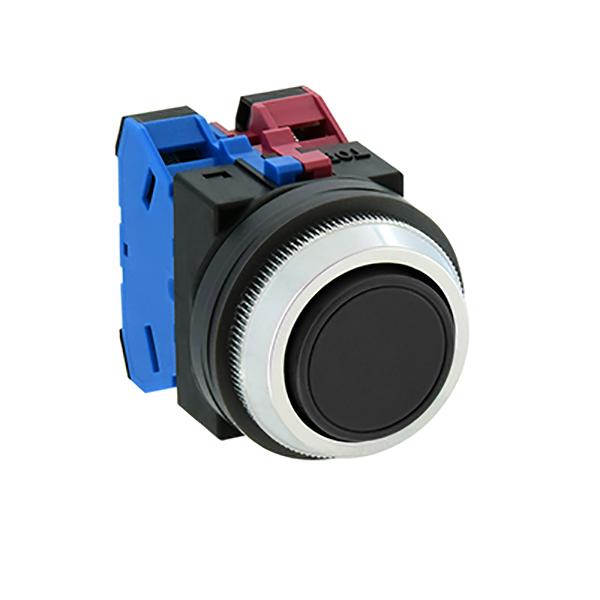

ABN122B IDEC Push Button Switch - 商品詳細情報

ABN122B

IDEC

Push Button Switch

Search Alternative Products

Show Similar

ABN122B

Product Overview

Push Button Switch

Search Alternative Products

Show Similar

Product Overview

Push Button Switch

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Data Sheet
Datasheet	EN_IDEC_Datasheet_20241217181056456

Specifications

Manufacturer name: IDEC

Product name: ABN122B

Product classification: Push Button Switch

Shape: Circular (flat type)

Color: Black

Contact arrangement: 2a2b

Contact point type: Silver contact

Mounting hole diameter: φ30

Operation type: Momentary

Structure: Terminal cover integrated type/Protection structure:IP65

Terminal shape: M3.5 Screw terminal

Type: Push Button switch

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.

Details

Highly reliable and available in a wide range of variations, heavy rotation type switches with outstanding environmental resistance
