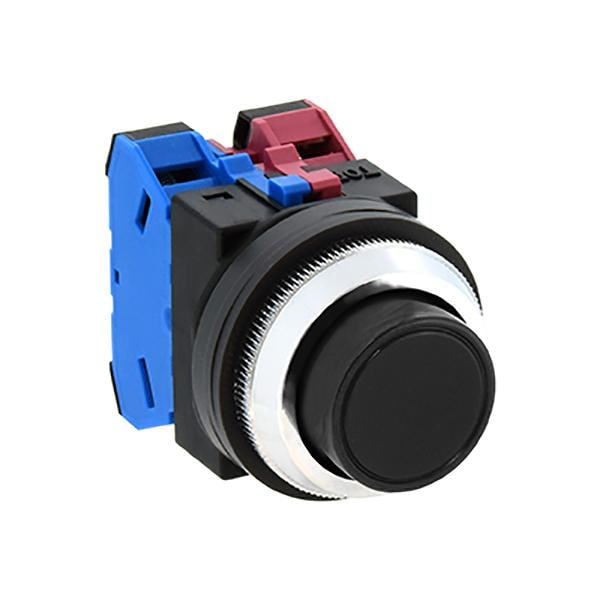

ABN210B IDEC Push Button Switch - 商品詳細情報

ABN210B

IDEC

Push Button Switch

Search Alternative Products

Show Similar

ABN210B

Product Overview

Push Button Switch

ECCN : EAR99

Search Alternative Products

Show Similar

Product Overview

Push Button Switch

ECCN : EAR99

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Data Sheet
Datasheet	EN_IDEC_Datasheet_20241217181056557

Specifications

Manufacturer name: IDEC

Product name: ABN210B

Product classification: Push Button Switch

Shape: Circular(Thrust)

Color: Black

Rated current: 10A

Rated Voltage(DC): 600V

Operational function: モメンタリ形

Specification 1: 接点構成:1a

Contact arrangement: 1a

Contact point type: Silver contact

Mounting hole diameter: φ30

Operation type: Momentary

Structure: Terminal cover integrated type/Protection structure:IP65

Terminal shape: M3.5 Screw terminal

Type: Push Button switch

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.

Details

Highly reliable and available in a wide range of variations, heavy rotation type switches with outstanding environmental resistance
