ALFN21611DNR IDEC Push Button Switch - 商品詳細情報

ALFN21611DNR

IDEC

Push Button Switch

Search Alternative Products

Show Similar

ALFN21611DNR

Product Overview

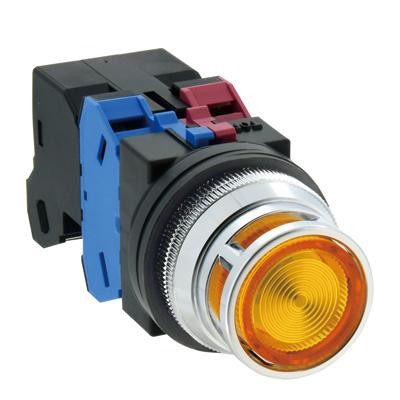

Illuminated Push Button Switch

ECCN : EAR99

Search Alternative Products

Show Similar

Product Overview

Illuminated Push Button Switch

ECCN : EAR99

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Specifications

Manufacturer name: IDEC

Product name: ALFN21611DNR

Product classification: Push Button Switch

Shape: Round (with protruding full guard)

Rated current: 10A

Rated Voltage(AC): 100|110V

Rated Voltage(DC): 600V

Operational function: モメンタリ形

Specification 1: Receipt:BA9S

Contact arrangement: 1a1b

Luminescent color: Red

Mounting hole diameter: ø30

Operation type: Momentary

Structure: Terminal cover integrated type/Protection structure:IP65

Terminal shape: M3.5 Screw terminal

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.

Details

Highly reliable and available in a wide range of variations, heavy rotation type switches with outstanding environmental resistance
