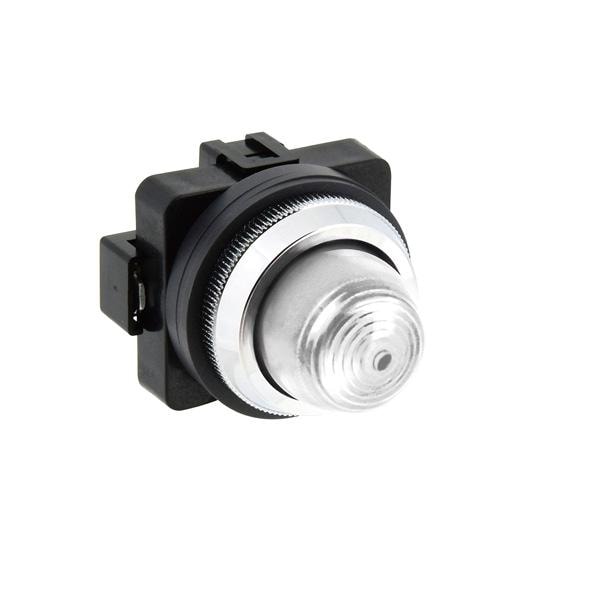

APN166DNPW IDEC Indicating light switch - 商品詳細情報

APN166DNPW

IDEC

Indicating light switch

Search Alternative Products

Show Similar

APN166DNPW

IDEC

Indicating light switch

IDEC

Indicating light switch

Product Overview

Pilot Light

Search Alternative Products

Show Similar

Product Overview

Pilot Light

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: IDEC

Product name: APN166DNPW

Product classification: Indicating light switch

Luminescent color: Pure white

Rated Voltage(AC): 6V

Rated Voltage(DC): 6V

Mounting hole diameter: φ30

Operation type: Pilot light

Shape: Circular type

Specification 1: Receipt:BA9S

Structure: Protective structure:IP65

Terminal shape: M3.5 Screw terminal

Type: LED

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.

Details

Highly reliable and available in a wide range of variations, heavy rotation type switches with outstanding environmental resistance
