HW1B-M111G IDEC Push Button Switch - 商品詳細情報

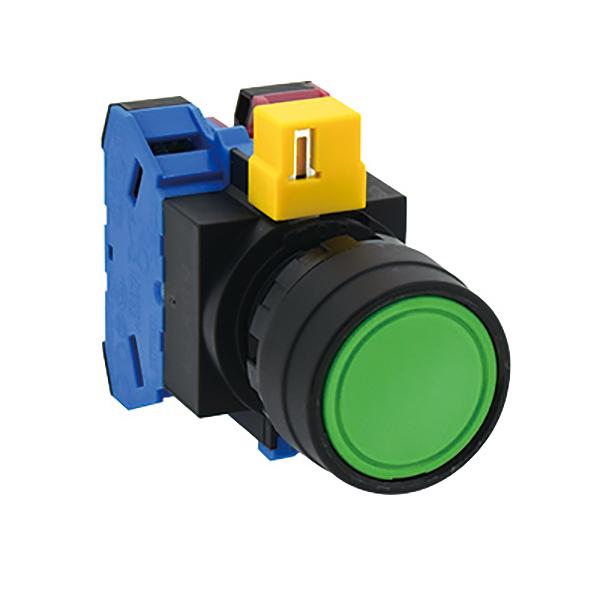

HW1B-M111G

IDEC

Push Button Switch

Search Alternative Products

Show Similar

HW1B-M111G

Product Overview

Switch Push Button N.O./N.C. SPDT Flush Round Button 10A 440VAC 220VDC 745.7VA Momentary Contact Screw Panel Mount

Lifecycle Status : Obsolete

ECCN : EAR99

Search Alternative Products

Show Similar

Product Overview

Switch Push Button N.O./N.C. SPDT Flush Round Button 10A 440VAC 220VDC 745.7VA Momentary Contact Screw Panel Mount

Lifecycle Status : Obsolete

ECCN : EAR99

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: IDEC

Product name: HW1B-M111G

Product classification: Push Button Switch

Lifecycle Status: Obsolete

RoHS: RoHS

Shape: Flat (round)

Color: Green

Length: 45.7mm

Maximum operating temperature: 50C

Minimum operating temperature: -25C

Operating life: 5000000Cycles

Width: 29.4mm

Contact arrangement: 1a1b

Functional operation: N.O./N.C.

Mounting hole diameter: φ22

Operation type: Momentary

Shape of the operation part: Flush Round Button

Structure: Terminal cover integrated type/Protective structure:IP65

Terminal shape: M3.5 Screw terminal

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.

Details

SS terminals with finger-protection structure for safety and man-hour savings
