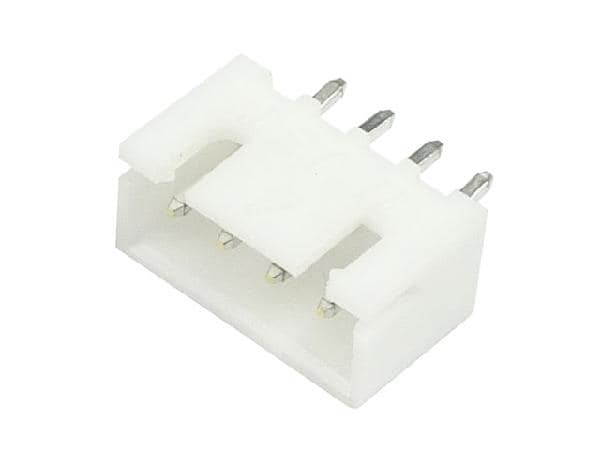

B4B-XH-A(LF)(SN) J.S.T. MFG Connector Headers and PCB Receptacles - 商品詳細情報
Search Alternative Products
Specifications
- Manufacturer name
- J.S.T. MFG
- Product name
- B4B-XH-A(LF)(SN)
- Product classification
- Connector Headers and PCB Receptacles
- Lifecycle Status
- Active
- RoHS
- RoHS2
- Number of positions
- 4
- Type
- Shrouded Header
- Pitch
- 2.5mm
- Series name
- XH
- Rated current
- 3A
- Rated Voltage(DC)
- 250V
- Connector Type
- Header
- Contact (Post) Length
- 3.4mm
- Contact Material
- Brass
- Contact Shape
- Square
- Contact Type
- Male Pin
- Contact point finish
- Tin
- Contact(Post) Finish
- Tin
- Fastening Type
- Detent Lock
- Height
- 7mm
- Insulation Color
- Natural
- Insulation Height
- 7mm
- Insulation Material
- Polyamide(PA66)/Nylon 6/6
- Length
- 12.4mm
- Material Flammability Rating
- UL94 V-0
- Maximum operating temperature
- 85C
- Maximum service temperature
- 85°C
- Minimum operating temperature
- -25C
- Minimum service temperature
- -25°C
- Mounting Type
- Through hole
- Number of Positions Loaded
- All
- Number of arrays
- 1
- Number of poles
- 4
- Operating temperature range
- -25 to 85C
- Shape/Type
- Straight
- Shrouding
- Shroud-4 Wall
- Style
- Board to Cable
- Terminal shape
- Turret Press Fit/Solder
- Width
- 5.75mm
- Wire connection method
- Solder
- Manufacturer Packaging
- Bulk
- Manufacturer packaging quantity
- 500
- Related Products
-
Products with similar specifications
If you find an error in the product information, please let us know here.
Documents

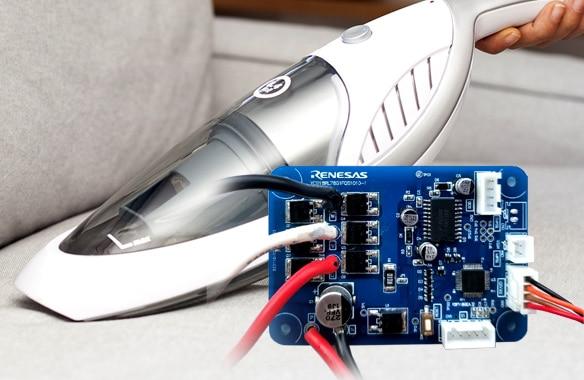

Reference Design
