030-51304-001 Japan Aviation Electronics Industry Connector Contact - 商品詳細情報

030-51304-001

Japan Aviation Electronics Industry

Connector Contact

代替品検索

類似スペック品検索

030-51304-001

Japan Aviation Electronics Industry

Connector Contact

Japan Aviation Electronics Industry

Connector Contact

製品概要

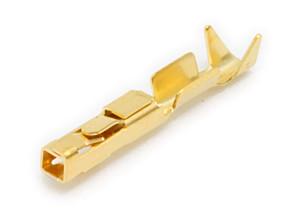

Contact SKT Crimp ST Cable Mount Loose Piece

ライフサイクル : Active

ECCN : EAR99

HTSN : 8536904000

代替品検索

類似スペック品検索

製品概要

Contact SKT Crimp ST Cable Mount Loose Piece

ライフサイクル : Active

ECCN : EAR99

HTSN : 8536904000

製品情報

データシート
3D CAD情報
- SamacSys
フットプリント/シンボル/3D CAD情報

データシート
データシート(English)	EN_Japan Aviation Electronics Industry_Datasheet_20241217181052413

製品仕様

メーカ名: Japan Aviation Electronics Industry

製品名: 030-51304-001

製品分類: Connector Contact

ライフサイクル: Active

RoHS: RoHS対応

Series name: PS

Height: 2.4mm

Length: 12.3mm

Maximum operating temperature: 85C

Minimum operating temperature: -55C

Other names: 670-2887 | 030-51304-001-ND

Width: 1.8mm

Contact point finish: Gold Over Nickel

Contact resistance: 10mOhm

Feature: 12.3mm

Maximum service temperature: 85°C

Minimum service temperature: -55°C

Number of poles: 1

Operating temperature range: C

Product type: メス

Rated current: 3A

Shape/Type: Straight

Shield: Signal

Type: Straight

Wire connection method: Crimp

メーカ梱包数量: 1
