D02-22-22P-PKG100 Japan Aviation Electronics Industry Connector Contact - 商品詳細情報

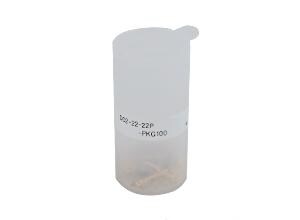

D02-22-22P-PKG100

Japan Aviation Electronics Industry

Connector Contact

Search Alternative Products

Show Similar

D02-22-22P-PKG100

Japan Aviation Electronics Industry

Connector Contact

Japan Aviation Electronics Industry

Connector Contact

Product Overview

Contact PIN Crimp ST Cable Mount Loose Piece

Lifecycle Status : Active

Search Alternative Products

Show Similar

Product Overview

Contact PIN Crimp ST Cable Mount Loose Piece

Lifecycle Status : Active

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Japan Aviation Electronics Industry

Product name: D02-22-22P-PKG100

Product classification: Connector Contact

Lifecycle Status: Active

RoHS: RoHS

Series name: D02

Length: 13.7mm

Maximum operating temperature: 85C

Minimum operating temperature: -55C

Contact resistance: 20mOhm

Operating temperature range: C

Product type: ピン

Shield: Signal

Type: Straight

Wire connection method: Crimp
