D02-M15SAG-20L9E Japan Aviation Electronics Industry Connector D-Subminiature - 商品詳細情報

D02-M15SAG-20L9E

Japan Aviation Electronics Industry

Connector D-Subminiature

Search Alternative Products

Show Similar

D02-M15SAG-20L9E

Japan Aviation Electronics Industry

Connector D-Subminiature

Japan Aviation Electronics Industry

Connector D-Subminiature

Product Overview

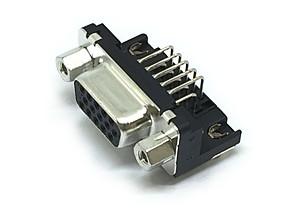

Conn High Density D-Sub SKT 15 POS Solder RA Thru-Hole 15 Terminal 1 Port

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536698000

Search Alternative Products

Show Similar

Product Overview

Conn High Density D-Sub SKT 15 POS Solder RA Thru-Hole 15 Terminal 1 Port

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536698000

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Japan Aviation Electronics Industry

Product name: D02-M15SAG-20L9E

Product classification: Connector D-Subminiature

Lifecycle Status: Active

RoHS: RoHS

Product type: SKT

Series name: D02-M15

Shape/Type: Right angle

Number of poles: 15

Rated current: 5A

Contact point finish: Gold

Height: 12.6mm

Length: 30.8mm

Maximum service temperature: 105°C

Minimum service temperature: -55°C

Number of arrays: 3

Width: 21.34mm

Wire connection method: Solder

Type: Right Angle

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.
