CN1J4TTD221J KOA Resistor Networks and Arrays - 商品詳細情報

CN1J4TTD221J

KOA

Resistor Networks and Arrays

Search Alternative Products

Cross-reference information

Show Similar

CN1J4TTD221J

KOA

Resistor Networks and Arrays

KOA

Resistor Networks and Arrays

Product Overview

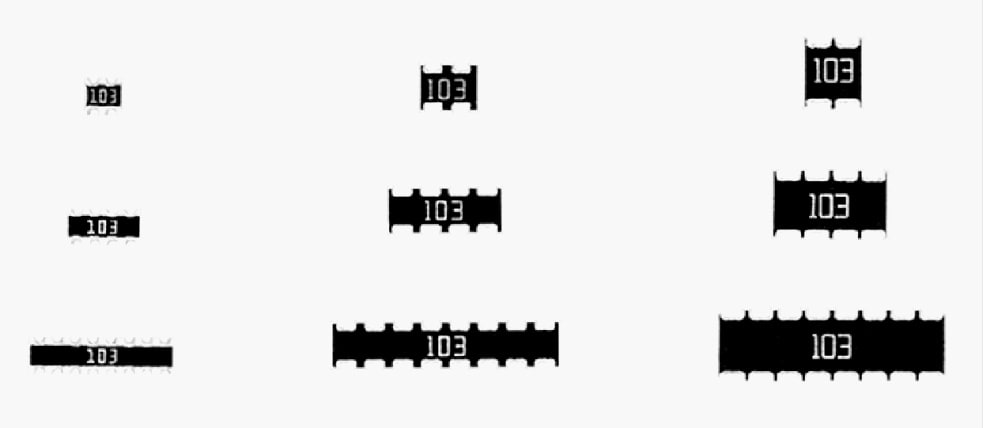

Res Thick Film Array 220 Ohm 5% ±200ppm/C ISOL Molded 8-Pin 1206(4 X 0603) Concave SMD Automotive T/R

Lifecycle Status : Obsolete

ECCN : EAR99

HTSN : 8533210030

Search Alternative Products

Cross-reference information

Show Similar

Product Overview

Res Thick Film Array 220 Ohm 5% ±200ppm/C ISOL Molded 8-Pin 1206(4 X 0603) Concave SMD Automotive T/R

Lifecycle Status : Obsolete

ECCN : EAR99

HTSN : 8533210030

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Data Sheet
Datasheet	EN_KOA_Datasheet_20180228134218229

Specifications

Manufacturer name: KOA

Product name: CN1J4TTD221J

Product classification: Resistor Networks and Arrays

Lifecycle Status: Obsolete

RoHS: RoHS

Series name: CN

Resistance value: 220Ohm

Tolerance: 5%

Number of elements: 4

Size: 3.20X1.60X0.60mm

Temperature coefficient: 200ppm/C

Package: 3216(1206inch)|Convex Terminal

Rated power: 0.063W

Length: 3.2mm

Width: 1.6mm

Height: 0.6mm

Preferred number: E3/E6/E12/E24

Maximum service temperature: 125C

Minimum service temperature: -55C

Number of Pins: 8

Type: Array

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 5000
