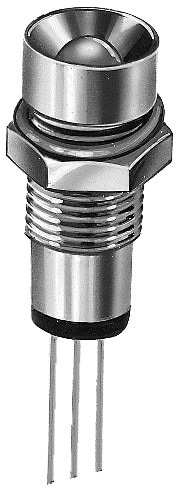

LD36S Knitter-Switch LED indicating light - 商品詳細情報

LD36S

Knitter-Switch

LED indicating light

Search Alternative Products

Show Similar

LD36S

Product Overview

LED Uni-Color Red 660nm

ECCN : EAR99

HTSN : 8541402000

Search Alternative Products

Show Similar

Product Overview

LED Uni-Color Red 660nm

ECCN : EAR99

HTSN : 8541402000

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Knitter-Switch_Datasheet_20150120132619902

Specifications

Manufacturer name: Knitter-Switch

Product name: LD36S

Product classification: LED indicating light

RoHS: RoHS

Rated Voltage(DC): 1.7Vf

Rated current: 20mA

Maximum service temperature: +85℃

Minimum service temperature: -30℃

Series name: LD

Size: Φ9X24mm

Terminal shape: PC端子

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 10
