YME IP 01B Knitter-Switch Key Switch - 商品詳細情報

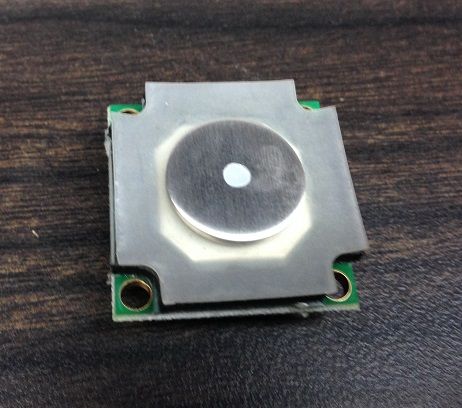

YME IP 01B

Knitter-Switch

Key Switch

代替品検索

類似スペック品検索

YME IP 01B

製品概要

steel keypad

代替品検索

類似スペック品検索

製品概要

steel keypad

製品情報

データシート
3D CAD情報
- SamacSys
フットプリント/シンボル/3D CAD情報

データシート
データシート	JA_Knitter-Switch_データシート_20170224163001989

製品仕様

メーカ名: Knitter-Switch

製品名: YME IP 01B

製品分類: Key Switch

RoHS: RoHS対応

Series name: YME

Rated current: 50mA

Rated Voltage(AC): 25VAC

Rated Voltage(DC): 25V

Feature: dust and water-proof protection, with red LED ( illumination type )

Size: 30X30X4.5mm

Height: 4.5mm

Length: 30mm

Maximum service temperature: ＋70℃

Minimum service temperature: －10℃

Operating life: 3.000,000

Width: 30mm

Color of operation button: silver (stainless steel)

Insulation resistance: 500kΩ

Number of circuits: 1

Operational function: mom-on

Purpose: Industrial

Specification 1: Stainless steel 1key

Stroke: 0.6mm

Terminal shape: connector terminal

Waterproof property: IP67

荷重値: 4.5N

衝撃基準: IK08

メーカ荷姿: Bulk

メーカ梱包数量: 10
