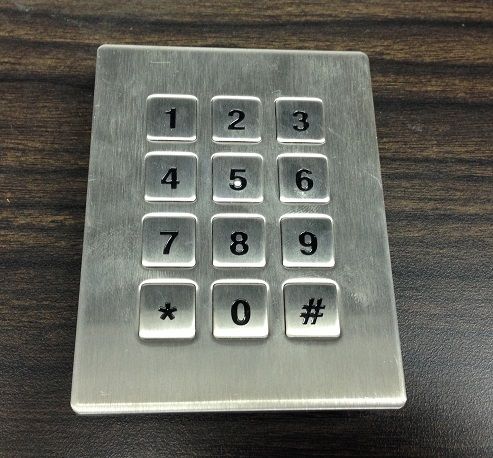

YME IP 12H Knitter-Switch Key Switch - 商品詳細情報
Search Alternative Products
Specifications
- Manufacturer name
- Knitter-Switch
- Product name
- YME IP 12H
- Product classification
- Key Switch
- RoHS
- RoHS
- Series name
- YME
- Rated current
- 50mA
- Rated Voltage(AC)
- 25VAC
- Rated Voltage(DC)
- 25V
- Feature
- with grand terminal
- Size
- 93X73X17mm
- Height
- 17mm
- Length
- 93mm
- Maximum service temperature
- ＋70℃
- Minimum service temperature
- －10℃
- Operating life
- 3.000,000
- Width
- 73mm
- Color of operation button
- silver (stainless steel)
- Insulation resistance
- 500kΩ
- Number of circuits
- 12
- Operational function
- mom-on
- Purpose
- Industrial
- Specification 1
- Stainless steel 12 key
- Stroke
- 0.6mm
- Terminal shape
- PC terminal
- Waterproof property
- IP67
- 荷重値
- 4.5N
- 衝撃基準
- IK08
- Manufacturer Packaging
- Bulk
- Manufacturer packaging quantity
- 10
