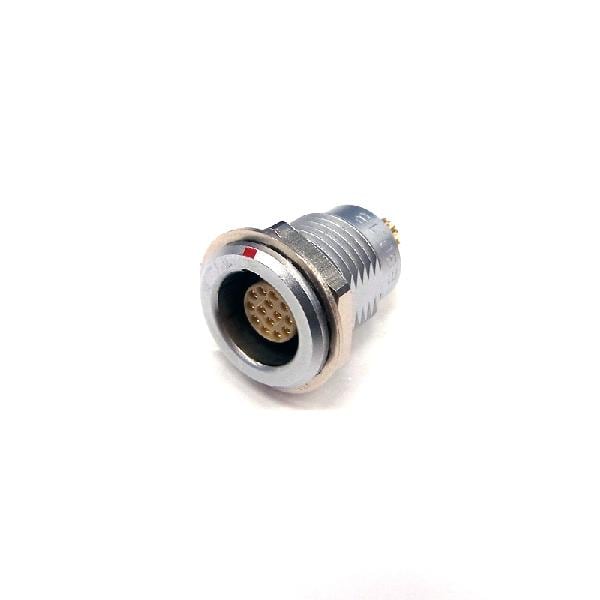

EGG.0B.302.CLL Lemo Connector Circular - 商品詳細情報
Search Alternative Products
Specifications
- Manufacturer name
- Lemo
- Product name
- EGG.0B.302.CLL
- Product classification
- Connector Circular
- Lifecycle Status
- Active
- RoHS
- RoHS
- Series name
- 0B
- Connector Type
- Receptacle/Female socket
- Shell size
- 302
- Mounting Type
- Panel mount
- Mounting Feature
- Bulkhead - Rear Side Nut
- Terminal shape
- Solder Cup
- Fastening Type
- Push-Pull
- Orientation
- G
- Material of shell
- Brass
- Shell Finish
- Chrome
- Contact point finish
- Gold
- Color
- Baige
- Waterproof property
- IP50
- Flame resistance
- UL94 V-0
- Feature
- -
- Shield
- シールド付き
- Rated current
- 10A
- Rated Voltage(AC)
- -
- Rated Voltage(DC)
- -
- Operating temperature range
- -55 to 250C
- Height
- 12.5mm
- Length
- 20.7mm
- Other names
- EGG0B302CLL | 1124-1036 | 3937-EGG.0B.302.CLL
- Product type
- 2芯固定ソケット
- Width
- 12.5mm
- Wire connection method
- Solder
- Maximum operating temperature
- 250C
- Minimum operating temperature
- -55C
- Number of poles
- 2
- Number of positions
- 2
- Strainrelief
- No
- Type
- Circular
- Weight
- 4.26g
