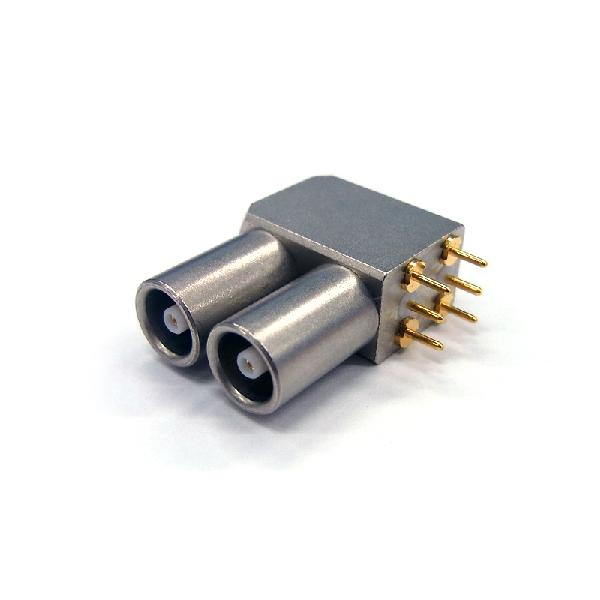

EPY.00.250.NTN Lemo Connector RF - 商品詳細情報

EPY.00.250.NTN

Lemo

Connector RF

Search Alternative Products

Show Similar

EPY.00.250.NTN

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694020

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694020

Product Information

Data sheet
3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Lemo

Product name: EPY.00.250.NTN

Product classification: Connector RF

Lifecycle Status: Active

RoHS: RoHS

Characteristic impedance: 50Ω

Color: White

Contact point finish: Gold

Height: 14.3mm

Length: 21.5mm

Maximum operating temperature: 260C

Minimum operating temperature: -55C

Number of poles: 1

Product type: 同軸 50Ω小型プリント基板用エルボソケット

Rated current: 4A

Type: Coaxial

Weight: 12.51g

Width: 8mm

Wire connection method: Solder

Manufacturer Packaging: Pack

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Lemo_Datasheet_20180216101901410
Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
