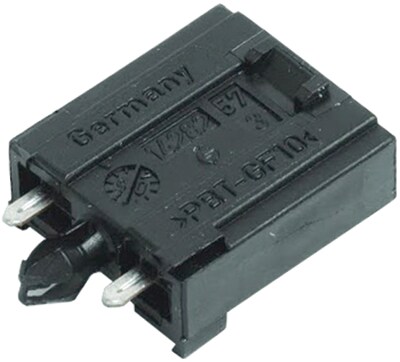

178.6165.0001 Littelfuse Fuse holder - 商品詳細情報

178.6165.0001

Littelfuse

Fuse holder

Search Alternative Products

Show Similar

178.6165.0001

Product Overview

Fuse Holder 80V Pin Through Hole Automotive

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8538908080

Search Alternative Products

Show Similar

Product Overview

Fuse Holder 80V Pin Through Hole Automotive

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8538908080

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Specifications

Manufacturer name: Littelfuse

Product name: 178.6165.0001

Product classification: Fuse holder

Lifecycle Status: Active

Rated Voltage(AC): 80V

Other names: 17861650001 | 178.6165.0001-ND | -178.6165.0001 | F5197 | 178.6165.000

Contact Material: Copper Alloy

Contact point finish: Tin

Fuse Type: Blade

Hues Holder: Holder

Mounting: SMD

Mounting Type: Through Hole

Number of circuits: 1

Orientation: Vertical

Series name: FLR

Simultaneous use/Related products: ATC|ATO

Terminal: PC Pin

fuse: 19.1x5.1x18.8mm

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 500

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Littelfuse_Datasheet_20141118171530109
Datasheet	EN_Littelfuse_Datasheet_20211105144702417
Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
