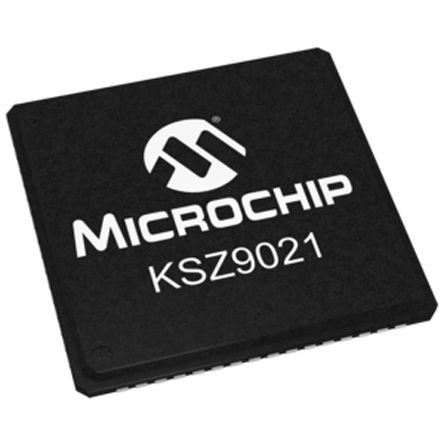

KSZ9021GN Microchip Technology Ethernet ICs - 商品詳細情報

KSZ9021GN

Microchip Technology

Ethernet ICs

Search Alternative Products

Cross-reference information

Show Similar

KSZ9021GN

Product Overview

GbE Physical Layer Transceiver with GMII/MII

Lifecycle Status : NRND

ECCN : 5A991b.1.

HTSN : 8542320070

Search Alternative Products

Cross-reference information

Show Similar

Product Overview

GbE Physical Layer Transceiver with GMII/MII

Lifecycle Status : NRND

ECCN : 5A991b.1.

HTSN : 8542320070

Product Information

Data sheet
3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Specifications

Manufacturer name: Microchip Technology

Product name: KSZ9021GN

Product classification: Ethernet ICs

Lifecycle Status: NRND

RoHS: RoHS

Package: 64-VFQFN/Exposed Pad

Number of poles of the contact point: 64

Type: Transceiver

Power-supply voltage: 1.2|3.3V

Maximum operating temperature: 70C

Minimum operating temperature: 0C

Maximum power current: 555mA

Number of drivers/receivers: 8/8

Protocol: Gigabit Ethernet

Mounting Type: Surface Mount

Supply voltage: 3.135 to 3.465V

Package (Supplier): 64-QFN(8x8)

Operating temperature range: 0 to 70C

Duplex: Full

Other names: 576-3635 | KSZ9021GN-ND

Manufacturer Packaging: Tray

Manufacturer packaging quantity: 348

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Microchip Technology_Datasheet_20150204023908677
Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
