09508120 Molex Card connector - 商品詳細情報

09508120

Molex

Card connector

Search Alternative Products

Show Similar

09508120

Product Overview

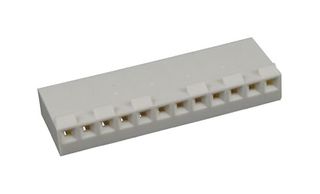

Conn Housing RCP 12 POS 3.96mm Crimp ST Bag

Lifecycle Status : Active

Search Alternative Products

Show Similar

Product Overview

Conn Housing RCP 12 POS 3.96mm Crimp ST Bag

Lifecycle Status : Active

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Molex_Datasheet_20180202025641504
Datasheet	EN_Molex_Datasheet_20150406101011379

Specifications

Manufacturer name: Molex

Product name: 09508120

Product classification: Card connector

Lifecycle Status: Active

RoHS: RoHS

Product type: レセプタクル

Pitch: 3.96mm

Height: 8.07mm

Length: 48.41mm

Number of arrays: 1

Other names: 41695-N-A12 | 09-50-8120 | 0009508120

Width: 15.88mm

Number of poles: 12

If you find an error in the product information, please let us know here.
