1201080509 Molex Actuator - 商品詳細情報

1201080509

Molex

Actuator

Search Alternative Products

Show Similar

1201080509

ECCN : EAR99

HTSN : 8544429090

Search Alternative Products

Show Similar

ECCN : EAR99

HTSN : 8544429090

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Molex_Datasheet_20250207173838224

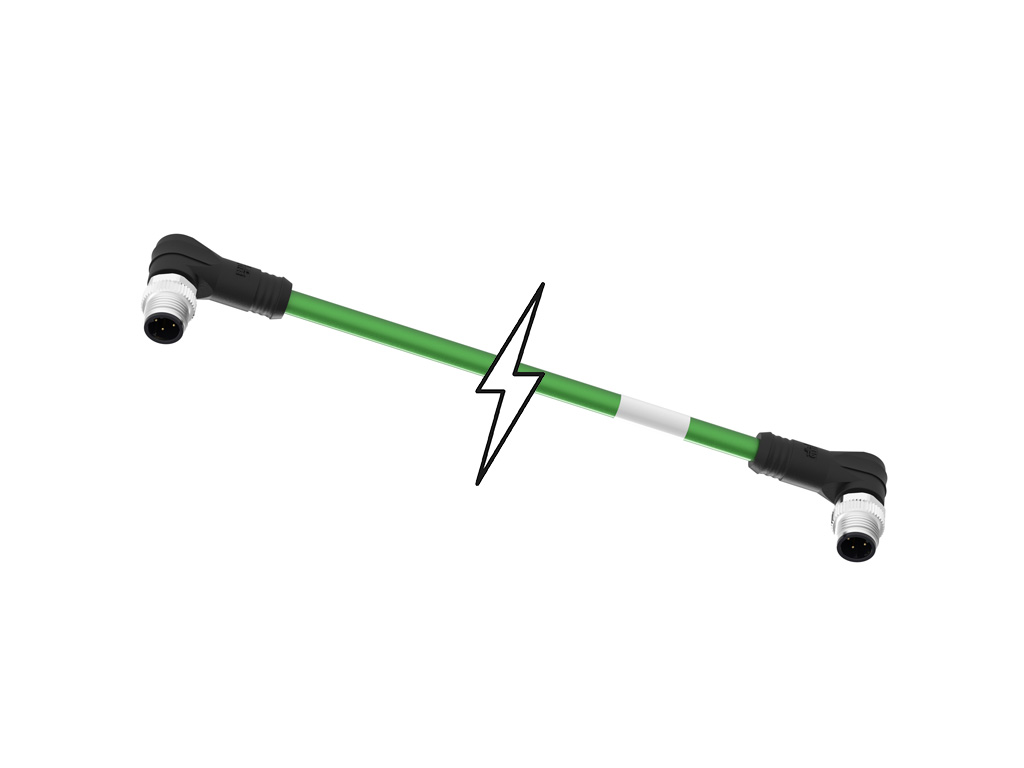

Specifications

Manufacturer name: Molex

Product name: 1201080509

Product classification: Actuator

Other names: E11A06312M020 | 120108-0509 | 1201080509

Cable type: Round

Color: Green

Connector 1 mounting type: Free Hanging (In-Line)

Connector 2 mounting type: Free Hanging (In-Line)

Length: 2.00m(6.56inch)

Series name: 120108

Shape of the connector 1: Receptacle, Right Angle

Shape of the connector 2: Receptacle, Right Angle

Shell size of the connector 1: M12

Shell size of the connector 2: M12

Manufacturer Packaging: Bulk
