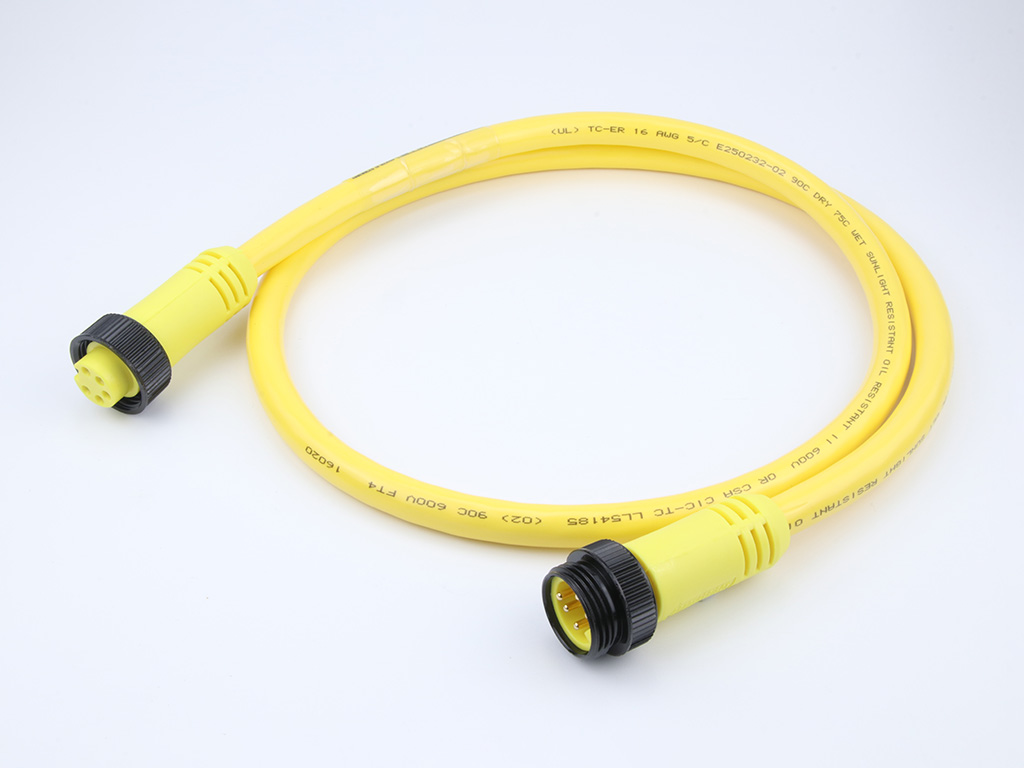

1300100105 Molex Actuator - 商品詳細情報

1300100105

Molex

Actuator

Search Alternative Products

Show Similar

1300100105

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8544429090

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8544429090

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Molex_Datasheet_20250207173812776

Specifications

Manufacturer name: Molex

Product name: 1300100105

Product classification: Actuator

Lifecycle Status: Active

Other names: 115030K13M050 | 130010-0105 | 1300100105

Cable type: Round

Color: Yellow

Connector 1 mounting type: Free Hanging (In-Line)

Connector 2 mounting type: Free Hanging (In-Line)

Length: 5.00m(16.4inch)

Series name: Brad Mini-Change 130010

Shape of the connector 1: Receptacle

Shape of the connector 2: Plug

Shell size of the connector 1: A

Shell size of the connector 2: A

Manufacturer Packaging: Bulk
