430451007 Molex Connector Power - 商品詳細情報

430451007

Molex

Connector Power

Search Alternative Products

Show Similar

430451007

Product Overview

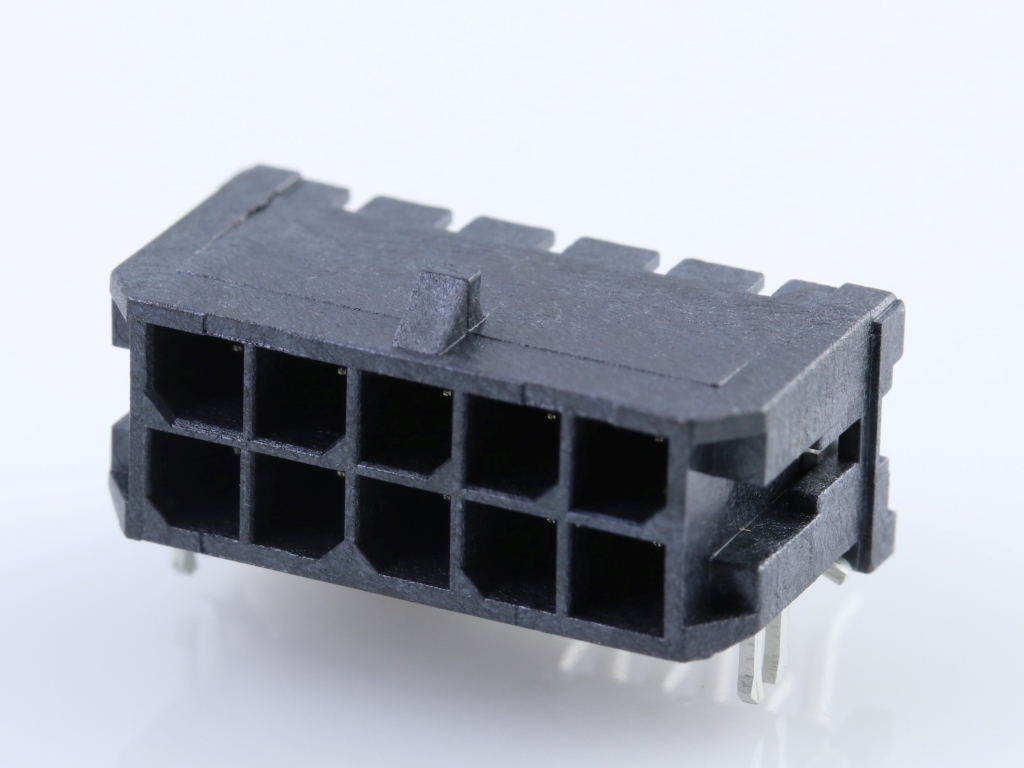

Conn Wire to Board HDR 10 POS 3mm Solder RA SMD Micro-Fit 3.0? Embossed T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Search Alternative Products

Show Similar

Product Overview

Conn Wire to Board HDR 10 POS 3mm Solder RA SMD Micro-Fit 3.0? Embossed T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Molex

Product name: 430451007

Product classification: Connector Power

Lifecycle Status: Active

Series name: Micro-Fit

Pitch: 3mm

Number of poles: 10

Number of arrays: 2

Product type: ヘッダー

Length: 19.15mm

Width: 15.4mm

Height: 8.77mm

Type: Wire to Board

Wire connection method: Solder

Other names: 43045-1007 | 43045-1007 | 0430451007

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Molex_Datasheet_20150106174730120
Datasheet	EN_Molex_Datasheet_20180216113022670
Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
