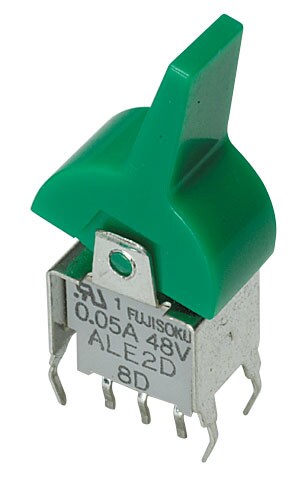

ALE2D-5M4-10-Z NIDEC COMPONENTS Rocker Switch - 商品詳細情報

ALE2D-5M4-10-Z

NIDEC COMPONENTS

Rocker Switch

Search Alternative Products

Show Similar

ALE2D-5M4-10-Z

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509065

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509065

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: NIDEC COMPONENTS

Product name: ALE2D-5M4-10-Z

Product classification: Rocker Switch

Lifecycle Status: Active

RoHS: RoHS

Rated Voltage(AC): 60VAC

Rated Voltage(DC): 60V

Rated current: 1mA

Terminal shape: R/A端子（0.2ｲﾝﾁﾋﾟｯﾁ）

Functional operation: On-On

Manufacturer Packaging: Tray

Manufacturer packaging quantity: 25

If you find an error in the product information, please let us know here.
