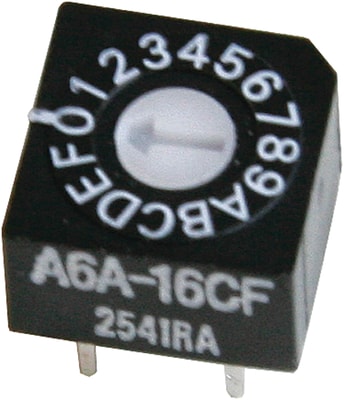

A6A-16RF Omron DIP Switch - 商品詳細情報

A6A-16RF

Omron

DIP Switch

Search Alternative Products

Show Similar

A6A-16RF

Product Overview

Switch DIP SP16T 16 Flush Screwdriver 0.1A 28VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509065

Search Alternative Products

Show Similar

Product Overview

Switch DIP SP16T 16 Flush Screwdriver 0.1A 28VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509065

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian

Specifications

Manufacturer name: Omron

Product name: A6A-16RF

Product classification: DIP Switch

Lifecycle Status: Active

RoHS: RoHS

Series name: A6A

Number of poles: 16

Rated current: 100mA

Rated Voltage(DC): 28VDC

Shape of the operation part: tool Rotary

Pitch: 2.54mm|Full

Number of positions: 16

Actuator Level: Flash|Concave

Mounting Type: Through Hole

Terminal: PC Pin

Length: 10mm

Width: 10mm

Height: 6.2mm

Maximum service temperature: 70°C

Operating life: Cycle

Minimum service temperature: -10°C

Contact point finish: Silver/Gold

Feature: IP64-Dust Prevention|Water Resistant

Operating temperature range: -10 to 70C

Circuit: 16Advance

Washability: Yes

Height on Board: 6.2mm

Other names: A6A16RF | A6A-16RF-ND | Z11562

Maximum operating temperature: 70C

Minimum operating temperature: -10C

Manufacturer packaging quantity: 100
