Specifications

Manufacturer name: Omron

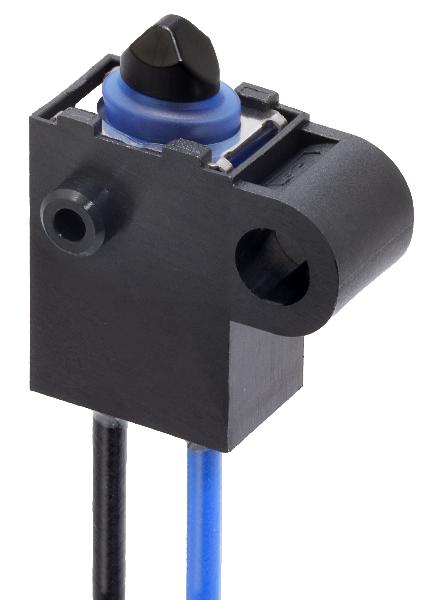

Product name: D2EW-SC03M

Product classification: Other Switch

Lifecycle Status: Active

RoHS: RoHS

Manufacturer Packaging: Pack

Manufacturer packaging quantity: 500
