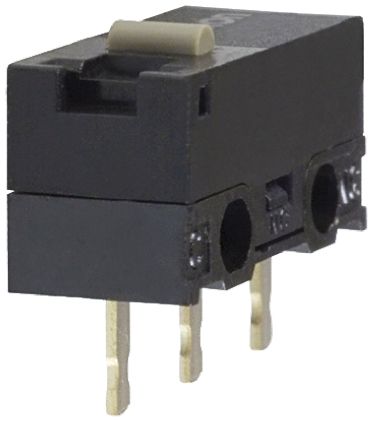

D2F Omron Detector Switch - 商品詳細情報

D2F

Omron

Detector Switch

Search Alternative Products

Show Similar

D2F

Product Overview

Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 3A 125VAC 30VDC 1.47N Thru-Hole

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509040

Search Alternative Products

Show Similar

Product Overview

Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 3A 125VAC 30VDC 1.47N Thru-Hole

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509040

Product Information

3D CAD情報
- SamacSys
PCN/PDN(EOL)

Data Sheet
Datasheet	EN_Omron_Datasheet_20150226005027487
Datasheet	EN_Omron_Datasheet_20180312173909900

Specifications

Manufacturer name: Omron

Product name: D2F

Product classification: Detector Switch

Lifecycle Status: Active

Series name: D2F

Shape of the operation part: Pin Plunger

Actuating force: 1.47N

Size: 12.8X6.5X5.8mm

Height: 7mm

Length: 12.8mm

Other names: SW500 | 2266-D2F

Width: 5.8mm

Functional operation: N.O./N.C.

Operating life: Cycles

Rated Voltage(AC): 125VAC

Rated current: 3A(AC)|2A(DC)

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1000

If you find an error in the product information, please let us know here.
