EDL02-05S05 P-DUKE Technology DC to DC Converter Modules - 商品詳細情報

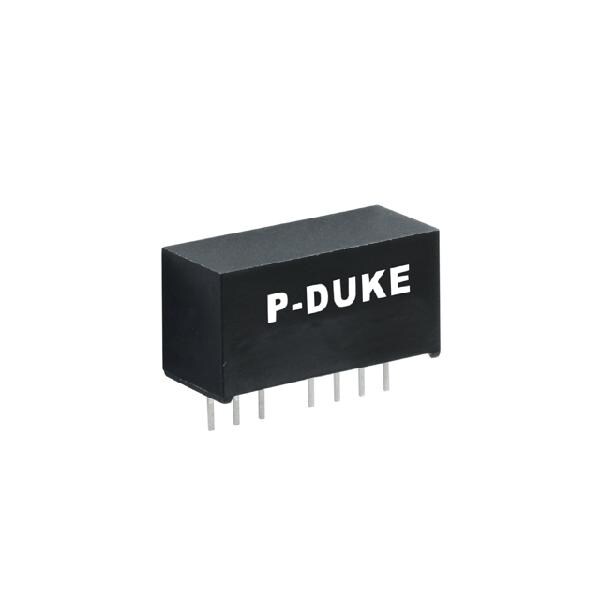

EDL02-05S05

P-DUKE Technology

DC to DC Converter Modules

加工依頼

点击这里查看类似商品

EDL02-05S05

P-DUKE Technology

DC to DC Converter Modules

P-DUKE Technology

DC to DC Converter Modules

生命周期状态 : Active

加工依頼

点击这里查看类似商品

生命周期状态 : Active

产品文档

数据表
3D CAD情報
- SamacSys

规格

制造商名称: P-DUKE Technology

制品名: EDL02-05S05

制品分类: DC to DC Converter Modules

生命周期状态: Active

RoHS: Not specified

Output current: 400

Output voltage: 5

Fan-out: 1

Output Power: 4.5

Maximum input voltage: 13.2

Insulated/Non-insulated: Isolated

Rated power: 2

Height: 11.2

Length: 21.8

Mounting Type: Thru-hole

Width: 9.1

原厂包装: Tube

制造商数量: 10

如果产品信息中有错误，请在此处指出。

产品文档

Data Sheet
Datasheet	EN_P-DUKE Technology_Datasheet_20241017110310532
Design and Simulation Data
3DCAD	EN_P-DUKE Technology_3DCAD_20241017110328975
