MPD30-24S05W P-DUKE Technology DC to DC Converter Modules - 商品詳細情報

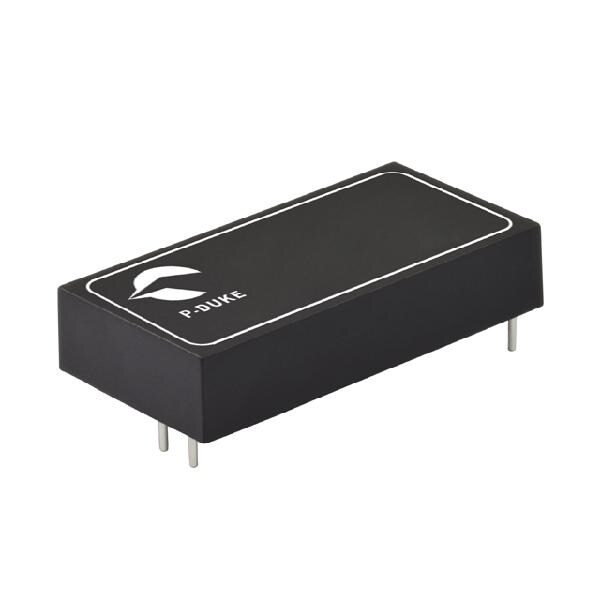

MPD30-24S05W

P-DUKE Technology

DC to DC Converter Modules

Search Alternative Products

Show Similar

MPD30-24S05W

P-DUKE Technology

DC to DC Converter Modules

P-DUKE Technology

DC to DC Converter Modules

Lifecycle Status : Active

Search Alternative Products

Show Similar

Lifecycle Status : Active

Product Information

Data sheet
3D CAD情報
- SamacSys

Specifications

Manufacturer name: P-DUKE Technology

Product name: MPD30-24S05W

Product classification: DC to DC Converter Modules

Lifecycle Status: Active

RoHS: Not specified

Output current: 6000

Output voltage: 5

Fan-out: 1

Output Power: 9

Maximum input voltage: 36

Insulated/Non-insulated: Isolated

Rated power: 30

Height: 10.2

Length: 50.8

Mounting Type: Thru-hole

Width: 25.4

Manufacturer Packaging: Tube

Manufacturer packaging quantity: 10

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_P-DUKE Technology_Datasheet_20241017110312228
Design and Simulation Data
3DCAD	EN_P-DUKE Technology_3DCAD_20241017110332716
