MPU01-12S12 P-DUKE Technology DC to DC Converter Modules - 商品詳細情報

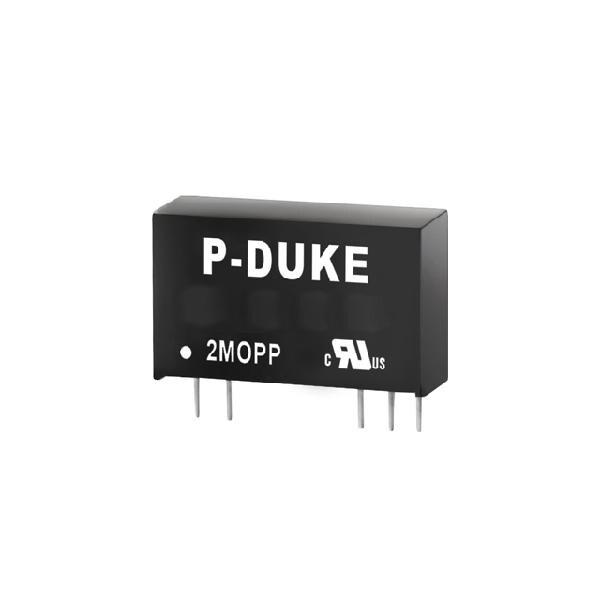

MPU01-12S12

P-DUKE Technology

DC to DC Converter Modules

Search Alternative Products

Show Similar

MPU01-12S12

P-DUKE Technology

DC to DC Converter Modules

P-DUKE Technology

DC to DC Converter Modules

Lifecycle Status : Active

Search Alternative Products

Show Similar

Lifecycle Status : Active

Product Information

Data sheet
3D CAD情報
- SamacSys

Specifications

Manufacturer name: P-DUKE Technology

Product name: MPU01-12S12

Product classification: DC to DC Converter Modules

Lifecycle Status: Active

RoHS: Not specified

Output current: 83

Output voltage: 12

Fan-out: 1

Output Power: 9.6

Maximum input voltage: 14.4

Insulated/Non-insulated: Isolated

Rated power: 1

Height: 12.5

Length: 19.6

Mounting Type: Thru-hole

Width: 9.9

Manufacturer Packaging: Tube

Manufacturer packaging quantity: 10

If you find an error in the product information, please let us know here.
