PDL06-24S05 P-DUKE Technology DC-DC转换器 - 商品詳細情報

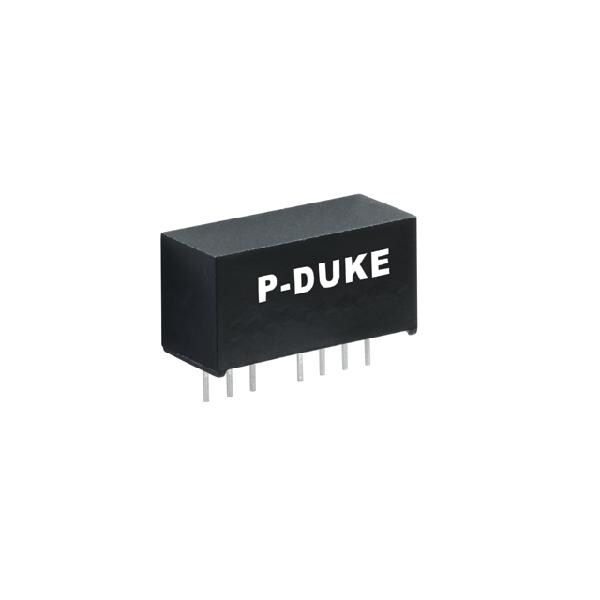

PDL06-24S05

P-DUKE Technology

DC-DC转换器

加工依頼

点击这里查看类似商品

PDL06-24S05

生命周期状态 : 量产中

加工依頼

点击这里查看类似商品

生命周期状态 : 量产中

产品文档

数据表
3D CAD情報
- SamacSys

规格

制造商名称: P-DUKE Technology

制品名: PDL06-24S05

制品分类: DC-DC转换器

生命周期状态: 量产中

RoHS: Not specified

输出电压: 5

输出电流: 1200

Output Power: 18

输出数: 1

最大输入电压: 36

绝缘/非绝缘: Isolated

额定电力: 6

Mounting Type: Thru-hole

宽度: 9.1

长度: 21.8

高度: 11.2

原厂包装: Tube

制造商数量: 10

如果产品信息中有错误，请在此处指出。

产品文档

Data Sheet
Datasheet	EN_P-DUKE Technology_Datasheet_20241017110316225
Design and Simulation Data
3DCAD	EN_P-DUKE Technology_3DCAD_20241017110334895
