ECQE2334JF Panasonic Capacitor Film - 商品詳細情報

ECQE2334JF

Panasonic

Capacitor Film

Search Alternative Products

Show Similar

ECQE2334JF

Product Overview

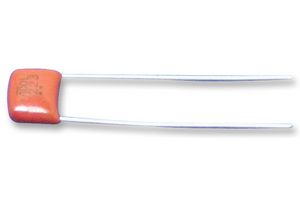

Cap Film 0.33uF 250V PET 5% (12 X 6.5 X 12mm) Radial 10mm 105C Bulk

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8532290040

Search Alternative Products

Show Similar

Product Overview

Cap Film 0.33uF 250V PET 5% (12 X 6.5 X 12mm) Radial 10mm 105C Bulk

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8532290040

Product Information

Data sheet
3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Panasonic

Product name: ECQE2334JF

Product classification: Capacitor Film

Lifecycle Status: Active

RoHS: RoHS

Package: Lead/Radial

Rated capacitance: 0.33uF

Tolerance: 5%

Series name: ECQ-E(F)

Rated Voltage(DC): 250V

Operating temperature range: -40 to 105C

Size: 12.00X6.50mm

Height: 13mm

Pitch: 10mm

Mounting Type: Through Hole

Purpose: General Purpose

Other names: ECQ-E2334JF

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1
