1.10.001.001/0301 Rafi Push Button Switch - 商品詳細情報

1.10.001.001/0301

Rafi

Push Button Switch

Search Alternative Products

Show Similar

1.10.001.001/0301

Product Overview

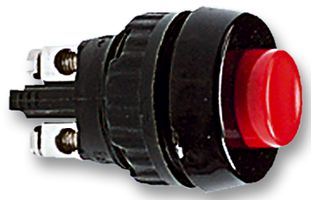

Switch Push Button N.O. SPST Round Button 0.7A 250VAC Momentary Contact Screw Panel Mount

Lifecycle Status : Unconfirmed

ECCN : EAR99

HTSN : 8536509031

Search Alternative Products

Show Similar

Product Overview

Switch Push Button N.O. SPST Round Button 0.7A 250VAC Momentary Contact Screw Panel Mount

Lifecycle Status : Unconfirmed

ECCN : EAR99

HTSN : 8536509031

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Rafi_Datasheet_20150113143601416

Specifications

Manufacturer name: Rafi

Product name: 1.10.001.001/0301

Product classification: Push Button Switch

Lifecycle Status: Unconfirmed

RoHS: RoHS

Rated current: 700mA(AC)

Other names: 1100010010301 | 1.10001.0010301 | 1715-1.10.001.001/0301 | 1715-1008-ND | 1.10001.0010301-ND | 1715-1008 | 1.10001.001//0301 | Q1634085 | *1.10001.0010301 | 1.10001.001/0301 | 1715-1008INACTIVE

Circuit: SPST

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 100
