MDBT42Q-P512KV2 Raytac 802.15.1 Bluetooth Modules - 商品詳細情報

MDBT42Q-P512KV2

Raytac

802.15.1 Bluetooth Modules

Search Alternative Products

Show Similar

MDBT42Q-P512KV2

Raytac

802.15.1 Bluetooth Modules

Raytac

802.15.1 Bluetooth Modules

Product Overview

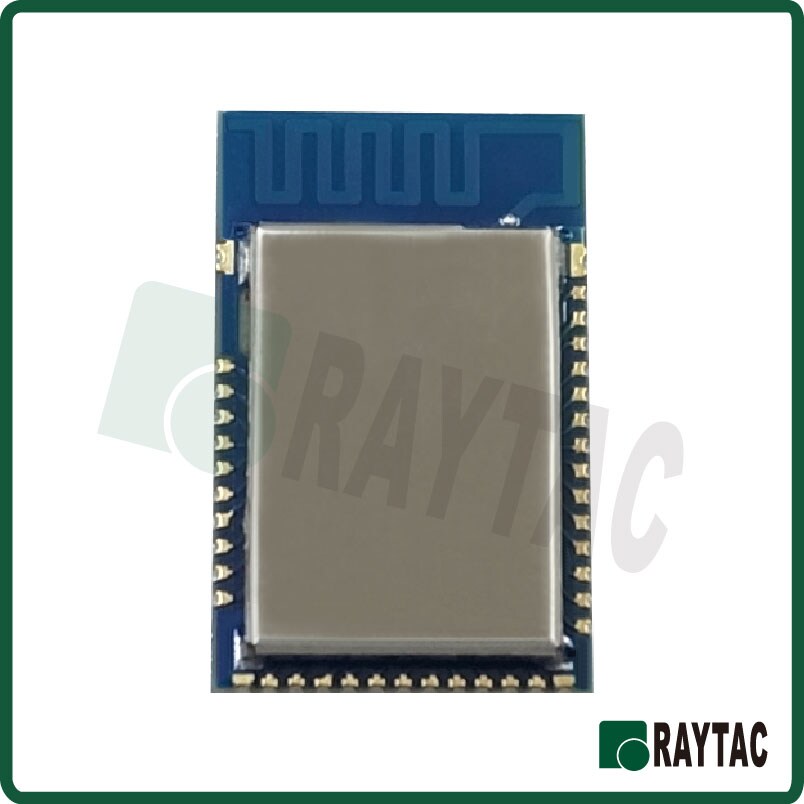

Nordic nRF52832 PCB Antenna Module

ECCN : 5A002a.1.

HTSN : 8517690000

Search Alternative Products

Show Similar

Product Overview

Nordic nRF52832 PCB Antenna Module

ECCN : 5A002a.1.

HTSN : 8517690000

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Raytac

Product name: MDBT42Q-P512KV2

Product classification: 802.15.1 Bluetooth Modules

Power-supply voltage: 1.7 to 3.6V

Operating temperature range: -40 to 85C

Other names: 3271-MDBT42Q-P512KV2

Bluetooth Version: Bluetooth 4.2 / 5

Size: 16X10X2.2mm

If you find an error in the product information, please let us know here.
