RSB18F2T106 Rohm ESD protection device - 商品詳細情報

RSB18F2T106

Rohm

ESD protection device

Search Alternative Products

Show Similar

RSB18F2T106

Rohm

ESD protection device

Rohm

ESD protection device

Product Overview

Diode Zener Dual Bidirectional 18V 10% 200mW Automotive 3-Pin UMD T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8541100050

Supporting Information

Search Alternative Products

Show Similar

Product Overview

Diode Zener Dual Bidirectional 18V 10% 200mW Automotive 3-Pin UMD T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8541100050

Supporting Information

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Rohm

Product name: RSB18F2T106

Product classification: ESD protection device

Lifecycle Status: Active

RoHS: RoHS

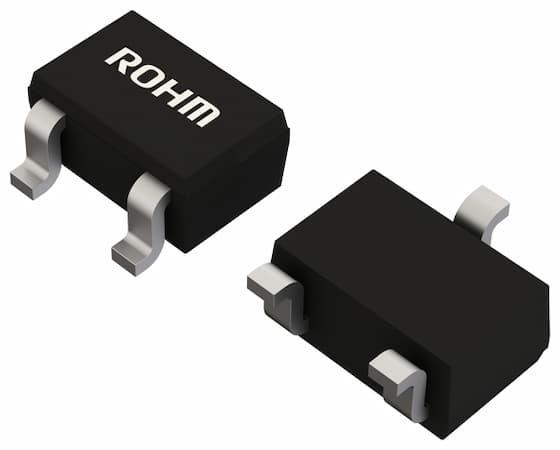

Package: SC-70/SOT-323

Mounting Type: Surface mount

Purpose: General Purpose

Type: Zener

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 3000

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Rohm_データシート_20161101101043365
Datasheet	EN_Rohm_Datasheet_20180221201954787
