CMT-0502-75-SMT-TR Same Sky (formerly CUI Devices) Buzzer - 商品詳細情報

CMT-0502-75-SMT-TR

Same Sky (formerly CUI Devices)

Buzzer

Search Alternative Products

Show Similar

CMT-0502-75-SMT-TR

Same Sky (formerly CUI Devices)

Buzzer

Same Sky (formerly CUI Devices)

Buzzer

Product Overview

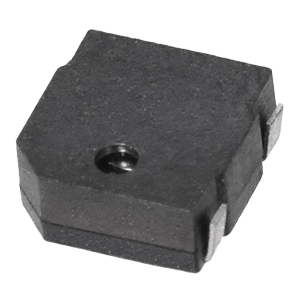

5 mm, 3 Vo-p, 75 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8531809041

Search Alternative Products

Show Similar

Product Overview

5 mm, 3 Vo-p, 75 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8531809041

Product Information

Data sheet
3D CAD情報
- SamacSys

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: CMT-0502-75-SMT-TR

Product classification: Buzzer

Lifecycle Status: Active

RoHS: RoHS

Sound pressure level: 75dB

Mounting Type: Surface Mount

Length: 5mm

Width: 5mm

Height: 2mm

Other names: 102-CMT-0502-75-SMT-TR | 102-CMT-0502-75-SMT-CT | 102-CMT-0502-75-SMT-DKR

Consumption current: 100mA

Dimension: 0.2, 0.2, 0.08in

Illumination: No

Input type: Vo-p

Maximum operating temperature: 85°C

Minimum operating temperature: -40°C

Rated Voltage: 5

Shape: Square

Technology: Magnetic

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Same Sky (formerly CUI Devices)_Datasheet_20200305122055715
Certificate
Certificate of RoHS Compliance	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204409261
Design and Simulation Data
Symbol/Footprint/3D Model	EN_Same Sky (formerly CUI Devices)_Symbol/Footprint/3D Model_20250204181813462
Footprint	EN_Same Sky (formerly CUI Devices)_Footprint_20250204185609270
