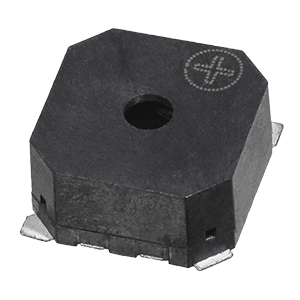

CMT-8504-100-SMT-TR Same Sky (formerly CUI Devices) Buzzer - 商品詳細情報

CMT-8504-100-SMT-TR

Same Sky (formerly CUI Devices)

Buzzer

Search Alternative Products

Show Similar

CMT-8504-100-SMT-TR

Same Sky (formerly CUI Devices)

Buzzer

Same Sky (formerly CUI Devices)

Buzzer

Product Overview

buzzer- 8.5 mm- 4 mm deep-

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8531809041

Search Alternative Products

Show Similar

Product Overview

buzzer- 8.5 mm- 4 mm deep-

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8531809041

Product Information

Data sheet
3D CAD情報
- SamacSys

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: CMT-8504-100-SMT-TR

Product classification: Buzzer

Lifecycle Status: Active

RoHS: RoHS

Sound pressure level: 100dB

Mounting Type: Surface Mount

Length: 8.5mm

Width: 8.5mm

Height: 4mm

Other names: 102-CMT-8504-100-SMT-TR | 102-CMT-8504-100-SMT-CT | 102-CMT-8504-100-SMT-DKR

Consumption current: 150mA

Dimension: 0.34, 0.34, 0.16in

Illumination: No

Input type: Vo-p

Maximum operating temperature: 85°C

Minimum operating temperature: -40°C

Rated Voltage: 5

Shape: Square

Technology: Magnetic

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Same Sky (formerly CUI Devices)_Datasheet_20200305122055010
Certificate
Certificate of RoHS Compliance	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204409361
Design and Simulation Data
Symbol/Footprint/3D Model	EN_Same Sky (formerly CUI Devices)_Symbol/Footprint/3D Model_20250204181813546
Footprint	EN_Same Sky (formerly CUI Devices)_Footprint_20250204185609344
