MP-3502 Same Sky (formerly CUI Devices) Connector Audio and Video - 商品詳細情報

MP-3502

Same Sky (formerly CUI Devices)

Connector Audio and Video

Search Alternative Products

Show Similar

MP-3502

Same Sky (formerly CUI Devices)

Connector Audio and Video

Same Sky (formerly CUI Devices)

Connector Audio and Video

Product Overview

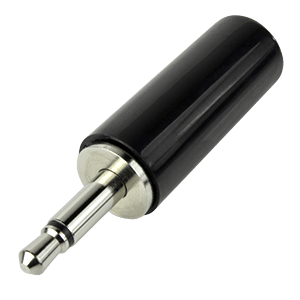

3.5 mm, Mono, Round Cover, Audio Plug Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694020

Search Alternative Products

Show Similar

Product Overview

3.5 mm, Mono, Round Cover, Audio Plug Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694020

Product Information

Data sheet
3D CAD情報
- SamacSys

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: MP-3502

Product classification: Connector Audio and Video

Lifecycle Status: Active

RoHS: RoHS

Connector Type: Plug

Rated Voltage(DC): 12V

Mounting Type: Cable - Modular

Orientation: Vertical

Shield: No

Color: Black

Current　rating: 1A

Dimension: 0.35, 1.57in

Number of Conductors: 2

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Same Sky (formerly CUI Devices)_Datasheet_20240419182640415
Certificate
Certificate of RoHS Compliance	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204722526
Design and Simulation Data
Symbol/Footprint/3D Model	EN_Same Sky (formerly CUI Devices)_Symbol/Footprint/3D Model_20250204182925255
