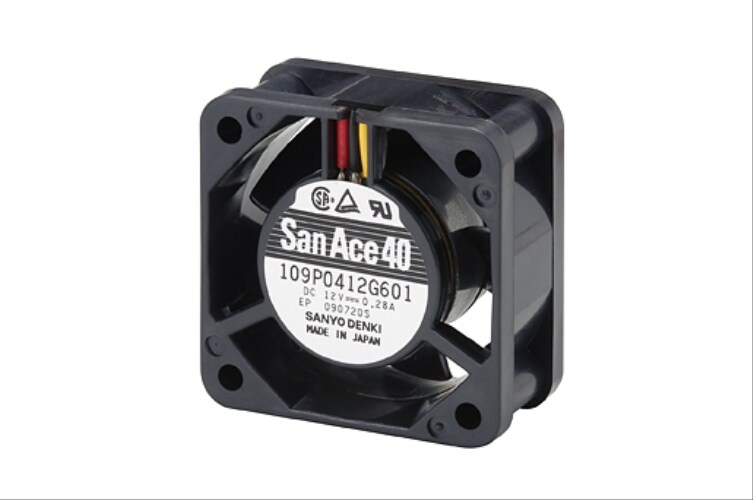

109P0412F6D01 Sanyo Denki DC fan motor - 商品詳細情報

109P0412F6D01

Sanyo Denki

DC fan motor

Search Alternative Products

Show Similar

109P0412F6D01

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8414596590

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8414596590

Product Information

Data sheet
3D CAD情報
- SamacSys

Data Sheet
Datasheet	EN_Sanyo Denki_Datasheet_20241107172747407

Specifications

Manufacturer name: Sanyo Denki

Product name: 109P0412F6D01

Product classification: DC fan motor

Lifecycle Status: Active

RoHS: RoHS

Frame size: 40x40mm

Thickness: 20mm

Maximum air volume: 0.183m3/min

Maximum static pressure: 45.1Pa

Sound pressure level: 28dB

Rated Voltage(DC): 12V

Rated current: 0.090A

Airflow: 0.182m3/min

Bearing Type: Ball

Electric power: 1.08W

Fan Type: Axial Tube

Feature: Lock Rotor Sensor

Frame: Square

Noise Figure: 28dB(A)

Operating temperature range: -20 to 70C

Series name: SanAce40

Standard: CSA|TUV|UL

Static Pressure: 45.1Pa

Terminal: Lead3 Book

Weight: 44.91g

回転数: 6500RPM

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1
